Our Services
Services we offer

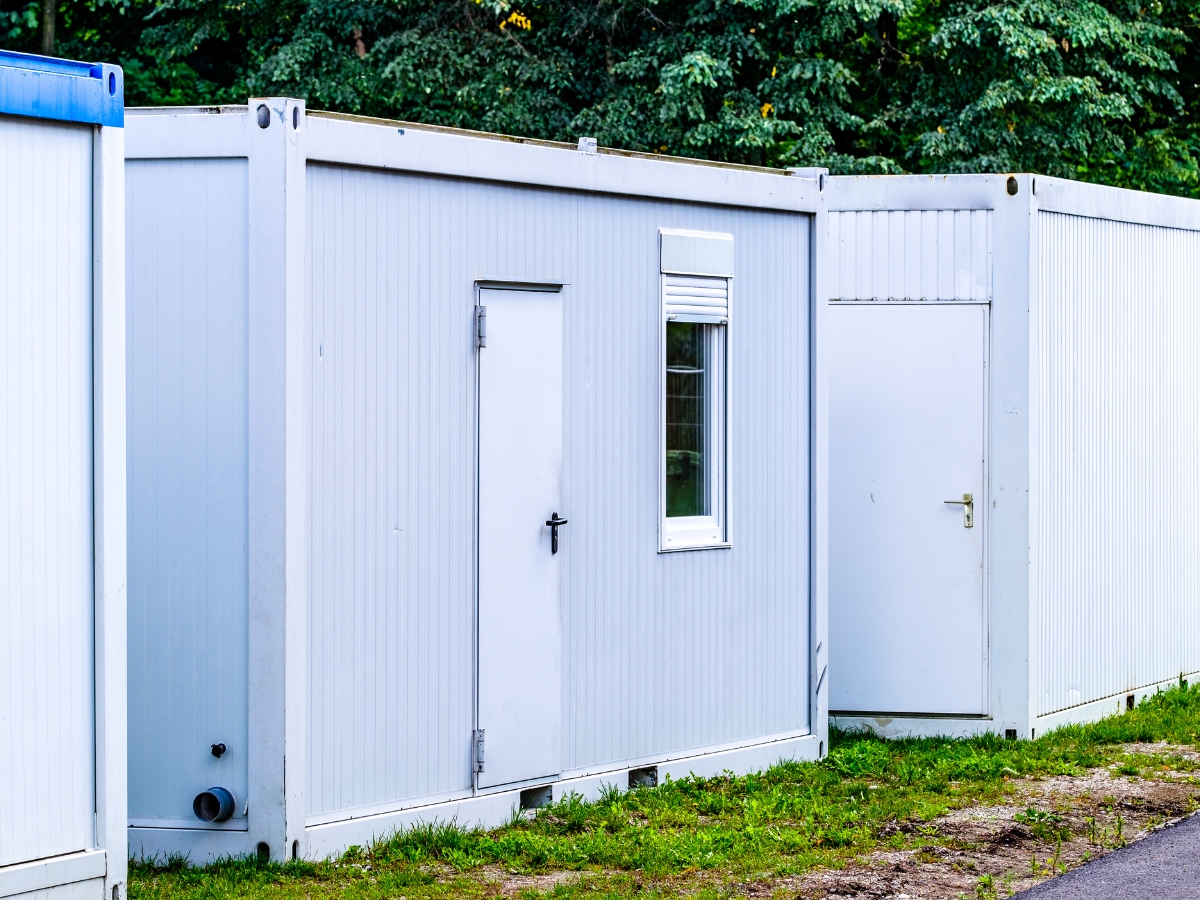

Portable Cabin Clinics
Specifications:
- Base Frame (CS): 120mm X 60mm - I Beam
- Roof: Pre-painted Corrugated sheet of 0.32 mm thickness
- 12mm thick fire-rated Gypsum board for interior wall & ceiling
- Putty and paint finish on interior wall & ceiling
- 50 mm rock wool insulation on the wall and ceiling
- Aluminum slide windows with double glass (Size: 80 X 80)
- Electrical Panel Board Alraed Saudi with 3-phase wiring
- Sufficient lights inside the portable cabin
- External Door: Steel Door with Lock and Keys
- Flooring: Fire-rated Cement Board (thickness 18mm) + Vinyl (2mm)
- Floor & Ceiling: 40 mm X 40 mm CS Tube
- Exterior wall: Cement Board (9mm Thickness) with Paint Finish
- Foundation Blocks (Size: 30 mm X 30 mm)

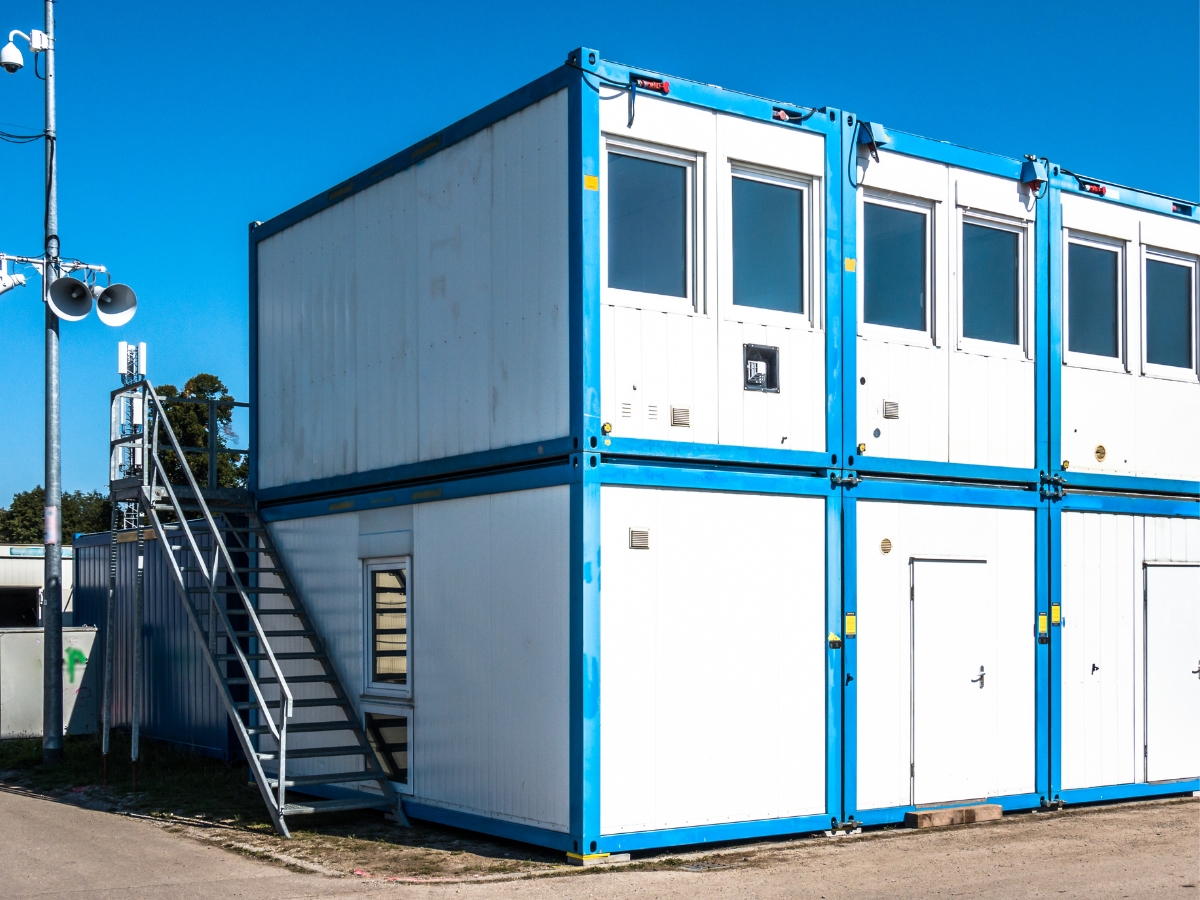

Portable Halls
Specifications:
- Base Frame (CS): 120mm X 60mm - I Beam
- Tube (CS): 40 mm * 40 mm / every 120cm in Wall & every 40cm on the floor
- Outside Wall & Roof: Pre-painted Corrugated sheet of 0.32 mm thickness for exterior wall and roof
- Indoor Wall & Ceiling: Wooden Décor
- 50 mm rock wool insulation on the wall and ceiling
- Plywood (Floor) Thickness: 18mm + Vinyl 2.5 mm
- Aluminum slide windows with anti-insect net
- Electrical Panel Board with 3-phase Wiring
- Sufficient lights inside & outside the cabin
- External Door: Steel Door with Lock and Keys
- Provision for window AC

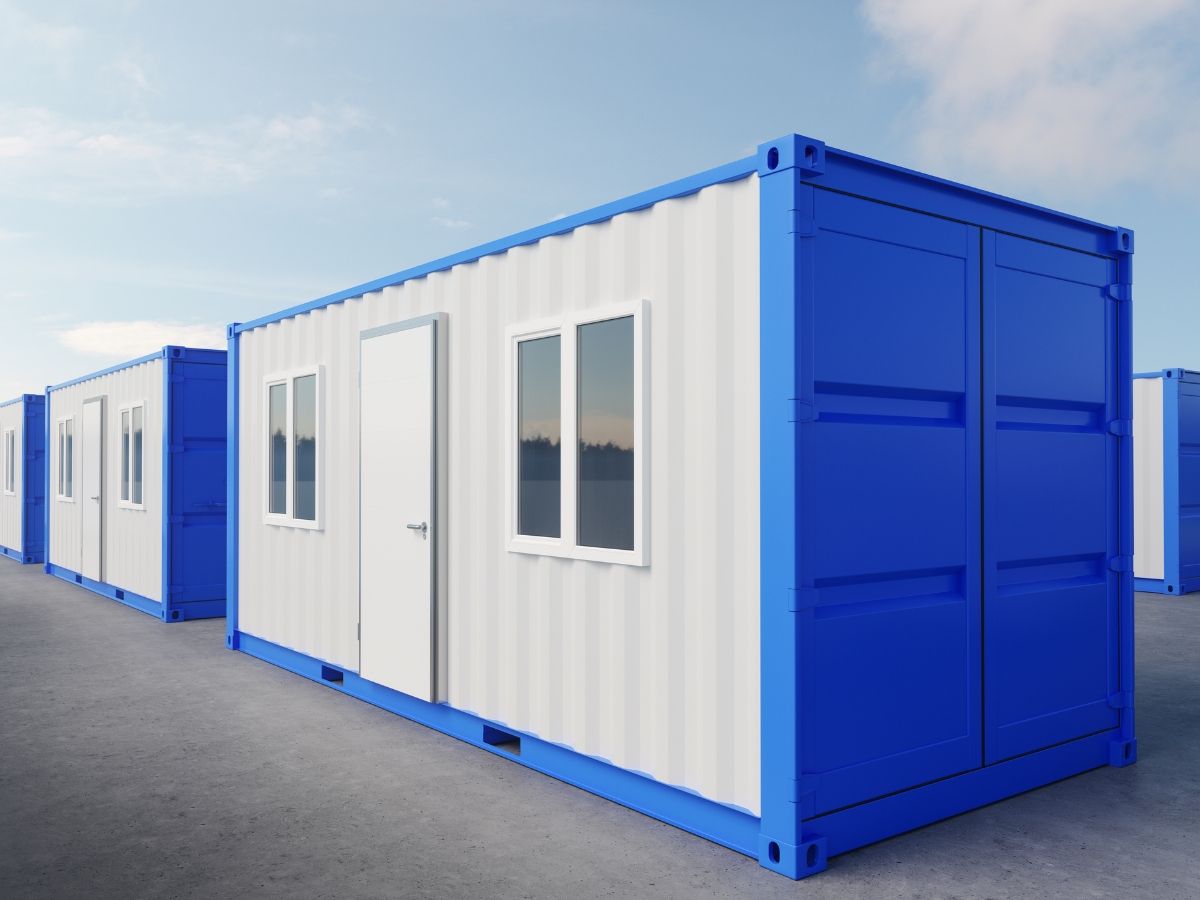

Standard Container toilet
Specifications:
- Toilets (European Type Commode or Eastern Type), Wash Basins, Urinals (As per client specification)
- Base Frame (CS): 120mm X 60mm - I Beam
- PVC panels for interior wall & ceiling
- 50 mm rock wool insulation on the wall and ceiling
- Floor: 12mm thick fire-rated cement board + 2mm thick vinyl
- Exhaust Fans - As per requirement
- Provision for Window or Split AC, Electrical Panel Board with breakers
- Sufficient lights inside and outside the portable toilet
- Internal Doors: PVC Doors - External Door: Steel door with Locks and Keys
- Exit Light - Battery Type, Smoke Detector, and Emergency Light included
- Access Staircase (Carbon Steel - Tube) with Handrail
- Septic Tank - CS Sheet - Capacity as required
- Fully repainting of the external surface of the container

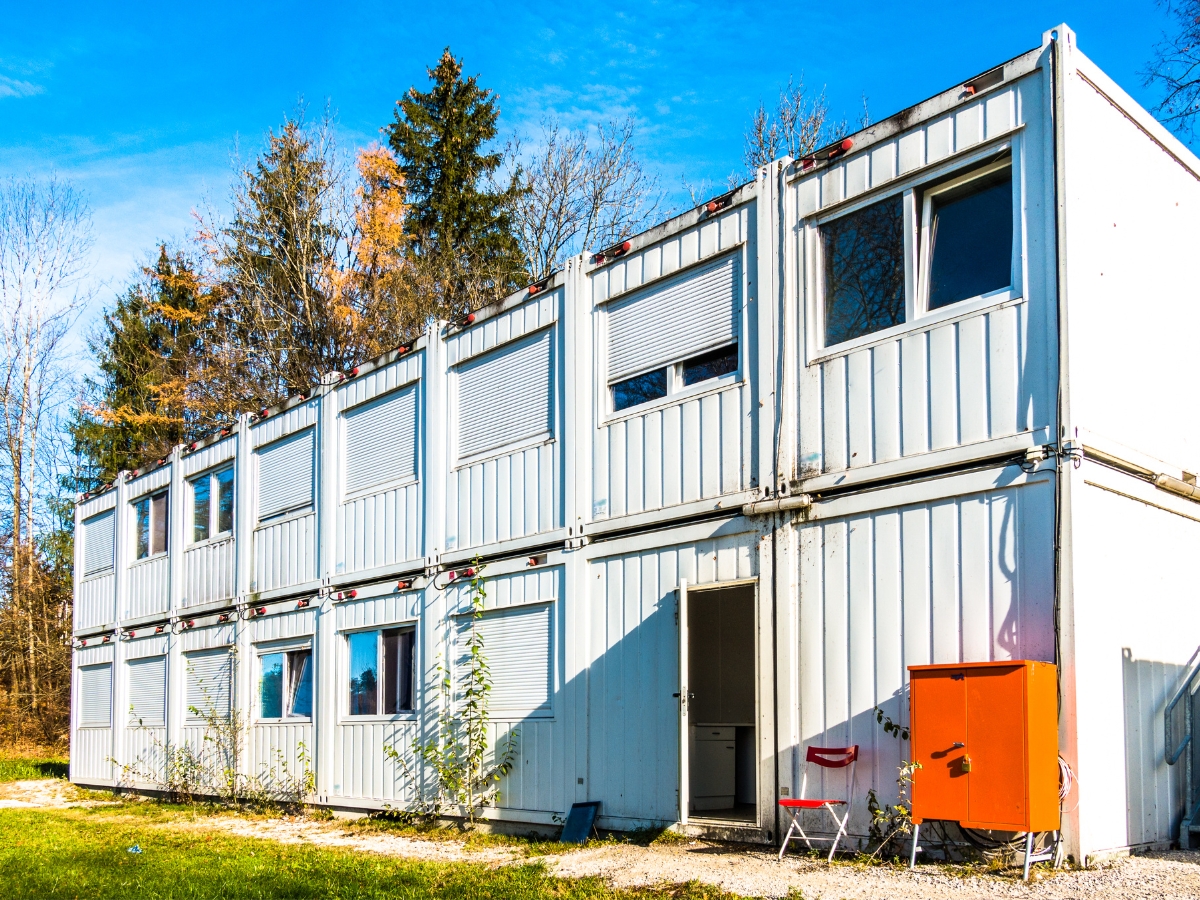

Customised cabins
General Specifications:
- Base Frame (CS): 120mm X 60mm - I Beam
- Tube (CS): 40 mm * 40 mm / every 120cm in Wall & every 40cm on the floor
- Outside Wall & Roof: Pre-painted Corrugated sheet of 0.32 mm thickness for exterior wall and roof
- 12mm thick fire rated gypsum board for interior wall & ceiling
- Putty and paint finish on the interior wall & ceiling
- 50 mm rock wool insulation on the wall and ceiling
- Floor: 18mm thick fire rated cement board + 2mm thick vinyl
- Aluminum slide windows with anti-insect net. Size 1mtr X 1 Mtr
- Electrical Panel Board with 3 phase Wiring
- Sufficient lights & electrical sockets inside the container
- External Door: Fire rated Doors with Lock and Keys
